Best Thermal Conductive Silicone Caps for TO-220 Transistors
Precision-molded thermal conductive silicone caps for efficient transistor heat dissipation and electrical insulation. Ideal for B2B buyers requiring reliable thermal management for power semiconductors.
- Excellent Thermal Conductivity: Engineered with advanced ceramic fillers to achieve high heat transfer rates, efficiently drawing heat away from sensitive transistor packages.
- Superior Electrical Insulation: Provides excellent dielectric strength, protecting components from short circuits while effectively managing heat.
- Wide Operating Temperature Range: Performs reliably in extreme environments from -60ยฐC to +200ยฐC, maintaining flexibility and structural integrity.
- Standard Transistor Compatibility: Precision-molded to fit industry-standard packages including TO-220.
- Flame Retardant & Compliant: Formulated to meet UL94 V-0 flame retardancy standards and fully compliant with RoHS and REACH regulations.
Products Categories
Get A Free Quote
Silicone Cap Description

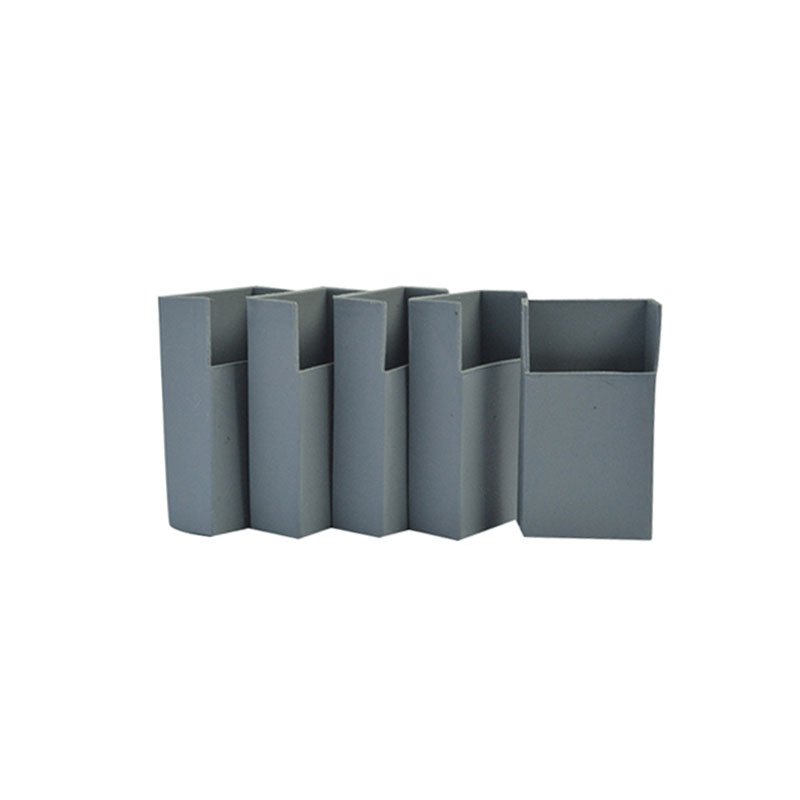

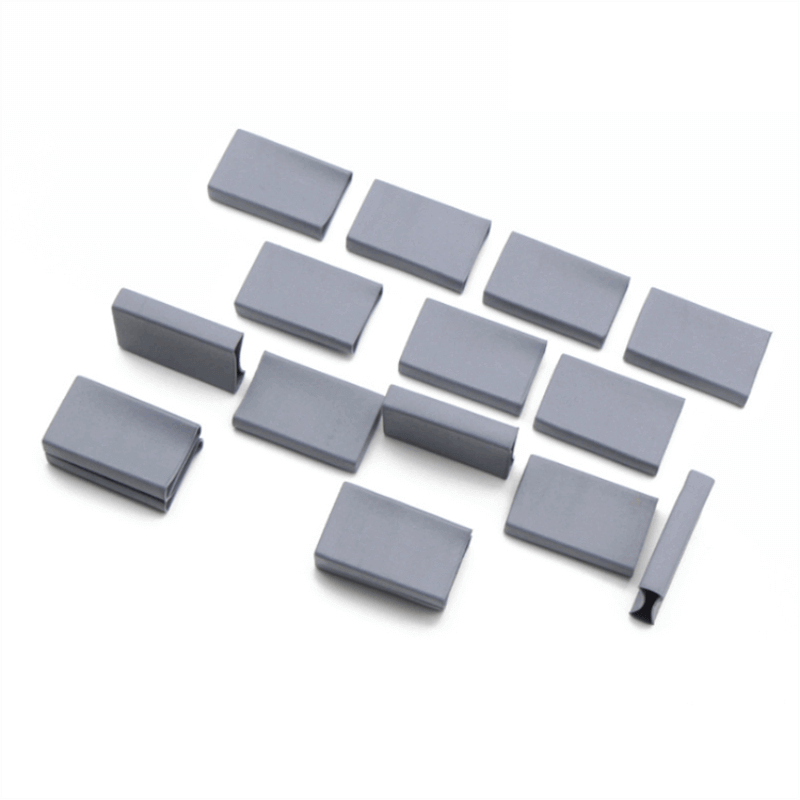

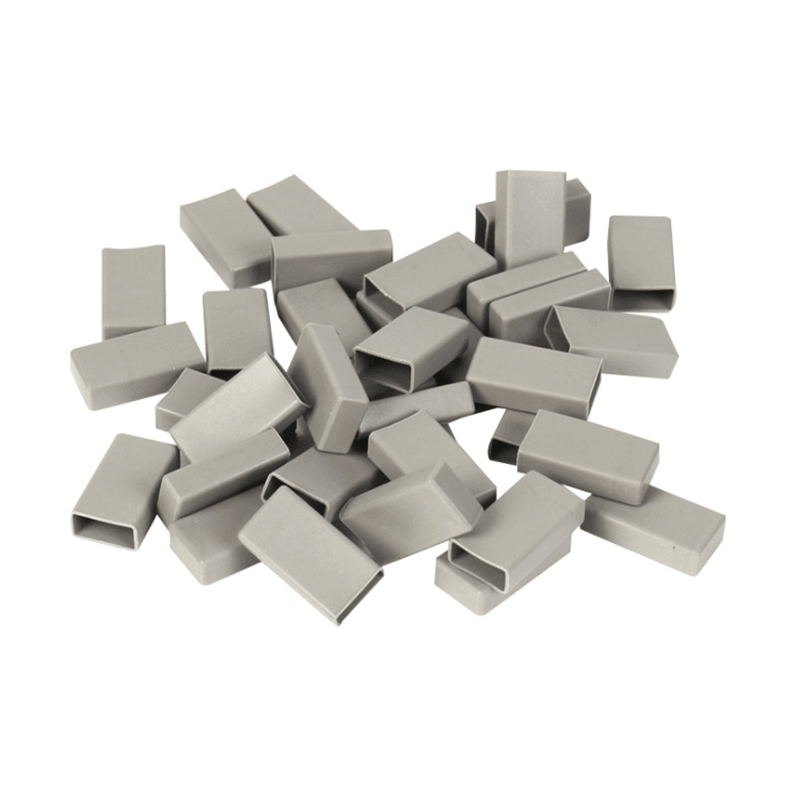

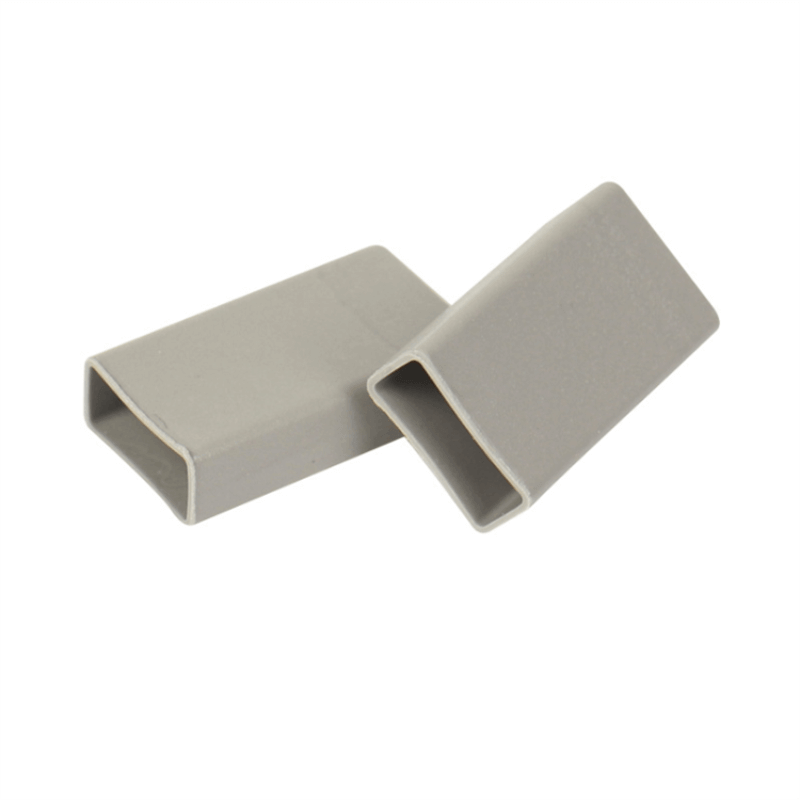

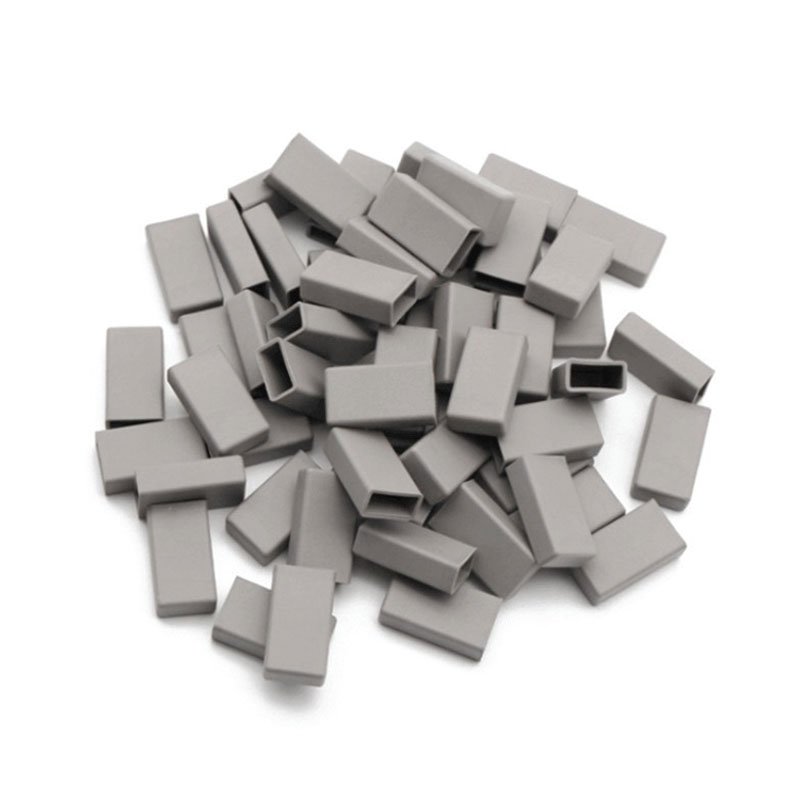

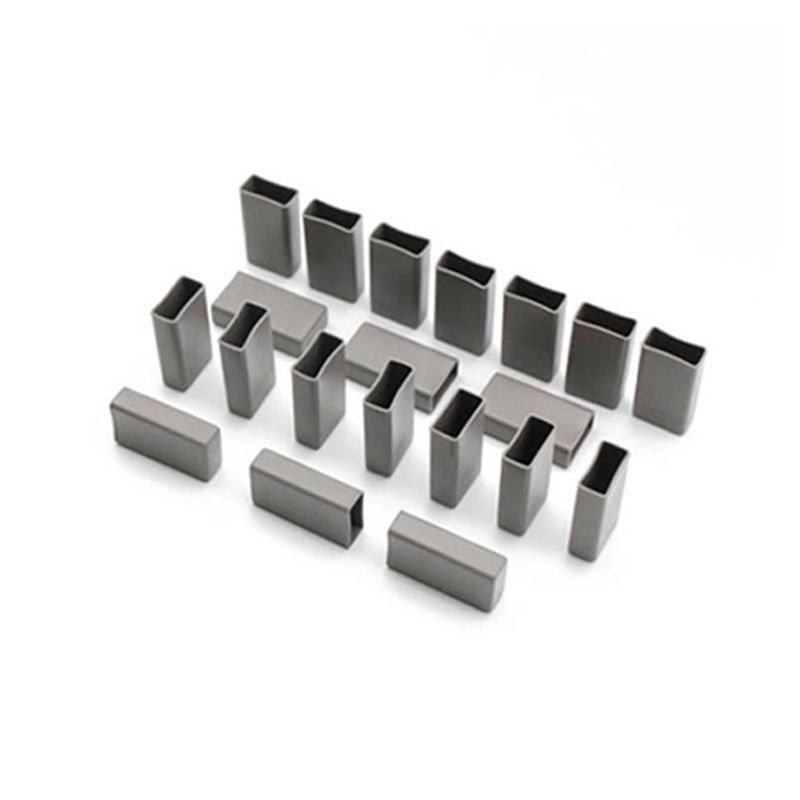

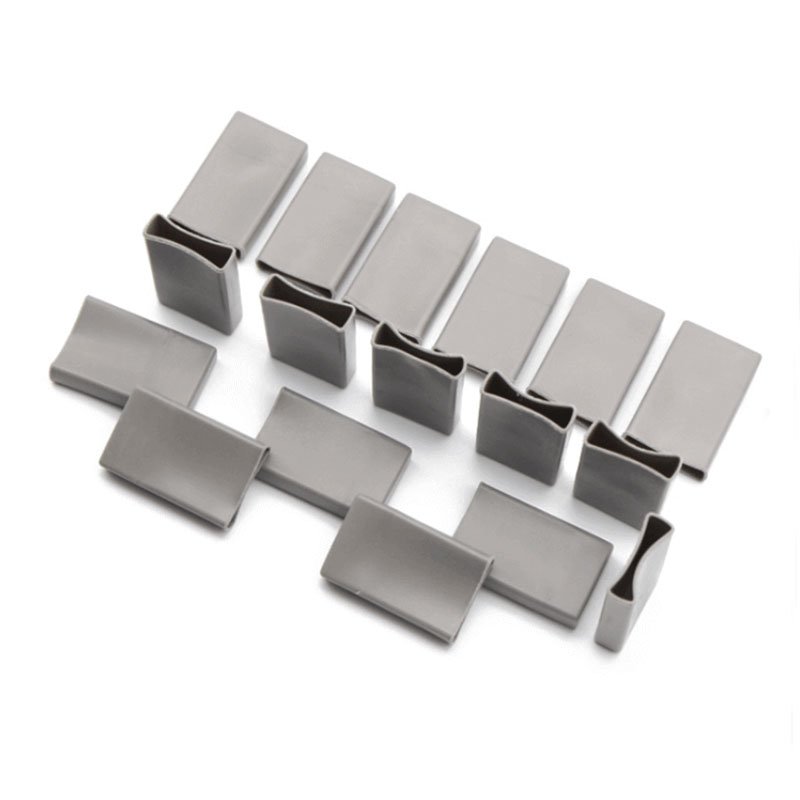

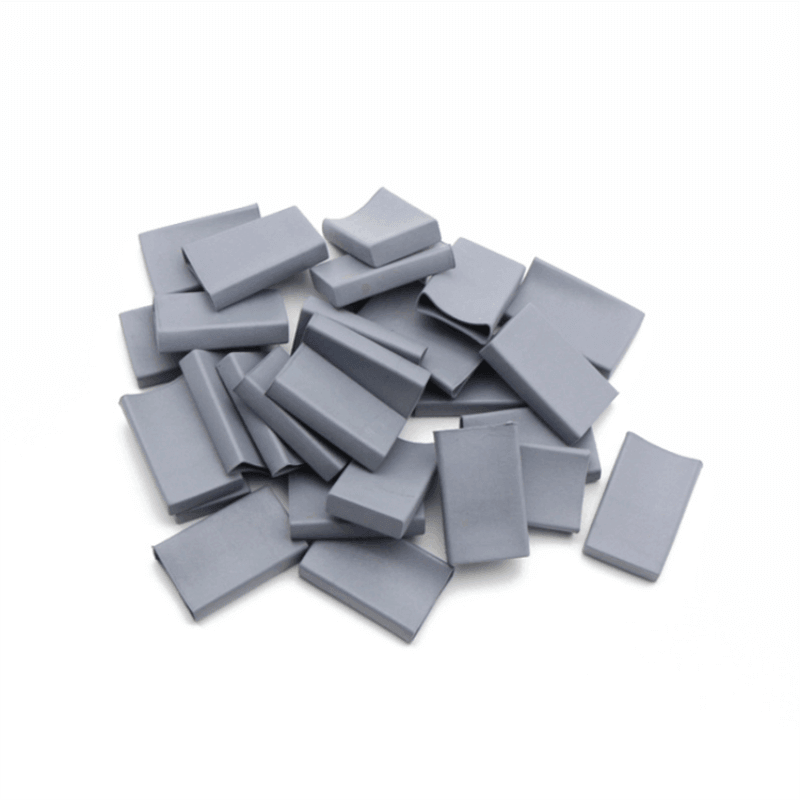

Our thermal conductive silicone caps are sleeve-type products made with silicone as the base material, combining both thermal conductivity and electrical insulation properties.
The core value of our silicone caps for transistors lies in their dual functionality: they serve as both a protective cover and a heat dissipation pathway. When installed over transistor cases (TO-220) between the component and heat sink, they eliminate the need for separate thermal interface materials while providing mechanical protection and electrical isolation.
Manufactured through precision compression molding, our caps feature tight dimensional tolerances (typically ยฑ0.3mm) and consistent wall thickness. Ensuring reliable fit and predictable thermal performance. The material’s inherent flexibility (Shore A 60-75) allows it to conform to component surfaces and absorb vibration, while its resistance to compression set ensures long-term stability in continuous-use applications.
The conformal surface structure guarantees very good compliance to the contact surfaces, minimizing total thermal resistance . Whether you need thermally conductive insulating caps for switching power supplies or automotive electronics, our material delivers consistent performance, reducing component operating temperatures and extending equipment service life.
Custom Solutions

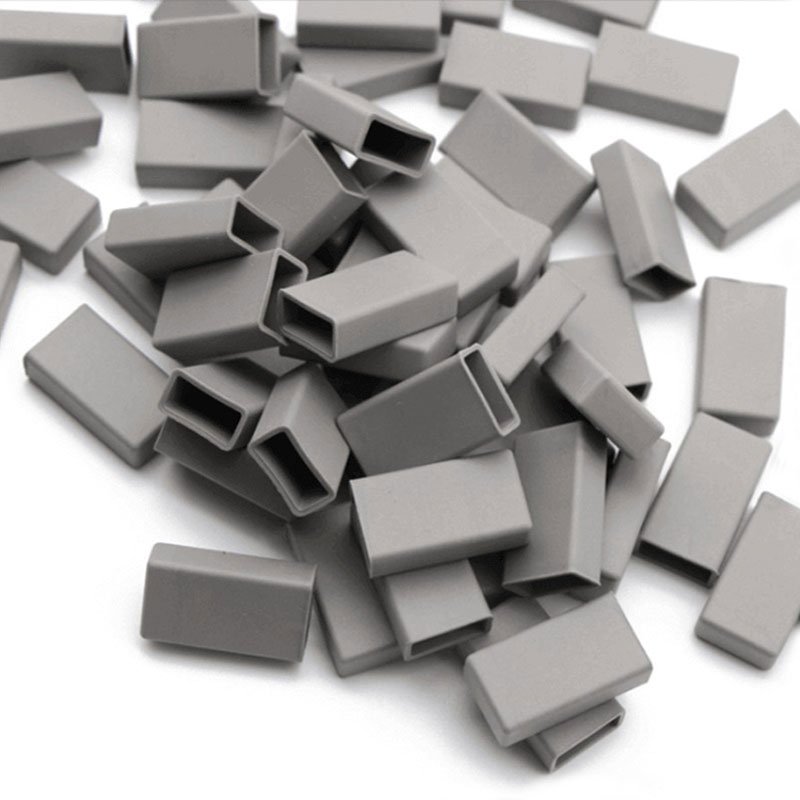

- Custom Dimensions: Need specific inner/outer dimensions for non-standard transistor packages? We offer full dimensional customization to fit your unique components perfectly, from prototype to mass production.
- Thermal Conductivity Tuning: Adjust the thermal conductivity level to match your specific heat dissipation requirements.
- Wall Thickness Options: Choose from multiple thickness options (0.3mm, 0.45mm, 0.8mm, 0.9mm) to optimize thermal performance and mechanical protection.

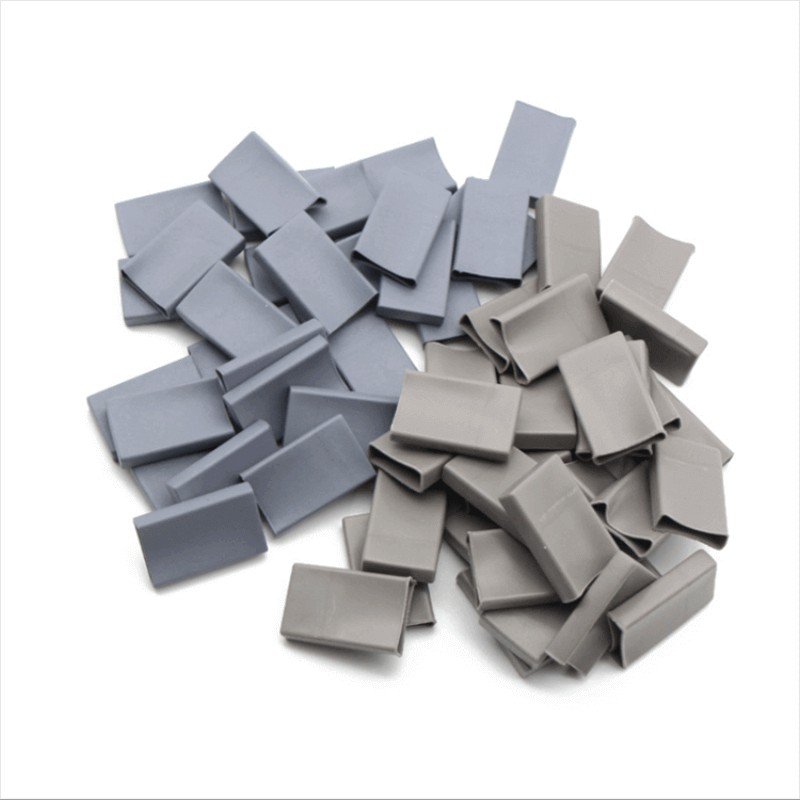

- Color Matching: Move beyond standard gray. We can match Pantone colors for branding or component identification purposes.
- Durometer Customization: Adjust the hardness (Shore A from 30 to 80) to achieve the perfect balance of flexibility and structural support.
- One-Stop Solution: From material formulation and prototype development to packaging and logistics, we manage the entire supply chain for you, with 7*24h technical support.
Get Free Quote for Thermal Conductive Caps!
At Siliconexy, we don’t just stock standard sizes; we engineer custom solutions. As a specialized ODM/OEM silicone product manufacturer, we empower you to create thermal conductive caps tailored to your exact specifications.
Where Can You Use Thermal Conductive Silicone Caps?
The unique combination of thermal conductivity and electrical insulation makes our caps essential across diverse industries . Here’s how our clients are using them:
- Power Supplies & Switching Power Supplies: As insulating caps over transistors, diodes, and thyristors in AC/DC converters, UPS units, and switch mode power supplies.
- Automotive & Electric Vehicles: In EV battery thermal management systems, power inverters, motor control units, and onboard chargers where both heat dissipation and electrical safety are critical.
- Telecommunications Equipment: In 5G base stations and network infrastructure to manage heat from RF power amplifiers and processing units.
- Industrial Electronics: For thermal coupling of IGBTs and MOSFETs in variable frequency drives, servo motor controllers, and industrial power amplification devices.
- Computer Hardware: Between CPUs and heat sinks, in notebook computers, and high-speed mass storage drives for efficient thermal management.
- Consumer Electronics: In LED drivers, audio amplifiers, and other devices requiring heat dissipation from power components.
Thermal Conductive Silicone Cap FAQs
How do I properly install silicone caps on TO-220 transistors?

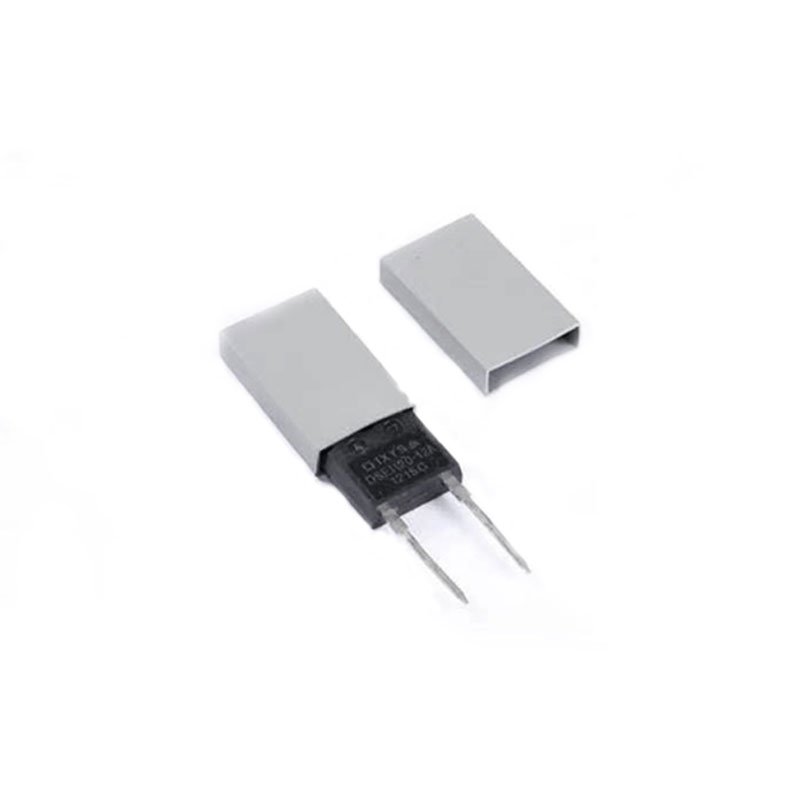

Before installation, ensure the surface of the TO-220 package is clean and free from dust and impurities. Simply slide the thermal silicone cap onto the TO-220 package of the component, ensuring a snug fit. The cap should cover the transistor body completely for optimal thermal transfer and electrical insulation.
What standard transistor sizes do you offer for thermal conductive silicone caps?
We offer precision-molded caps for all standard semiconductor packages including TO-220-A (21.5ร11.5ร5.9mm), TO-220-B (16.0ร11.5ร5.9mm), TO-3P-A (28.5ร17.5ร5.9mm), and TO-3P-B (28.8ร18.2ร6.6mm). Custom dimensions for non-standard components are also available through our OEM customization service.
Can these caps withstand continuous high-temperature operation?
Yes. Our high-temperature silicone caps are rated for continuous operation up to 180-200ยฐC and can withstand intermittent exposure up to 260ยฐC. The material maintains its flexibility and thermal conductivity even after prolonged exposure to elevated temperatures, making it suitable for demanding applications near power supplies and automotive electronics.
What thermal conductivity ranges are available for custom silicone caps?
We offer multiple grades ranging from 0.8 W/mยทK to 2.5 W/mยทK depending on your application requirements. Our standard transistor insulating caps typically provide 1.0-1.8 W/mยทK thermal conductivity, which is optimal for most power electronics applications. For specialized requirements, we can formulate custom compounds to achieve specific thermal performance targets.
Are silicone thermal caps compliant with environmental and safety regulations?
Absolutely. Our thermally conductive silicone caps are formulated to meet UL94 V-0 flame retardancy standards and are compliant with RoHS and REACH environmental regulations. For applications requiring additional certifications, we can provide material documentation and compliance testing reports upon request.
